Product Details:
|
| Name: | SOSS Invisible Hinge 218 | Advantages: | High Sensory |
|---|---|---|---|
| Weight Loading: | 20 Kgs/3 Pcs | Size: | 13x60x9mm |
| Surface Finish: | Antique Copper | Open Degree: | 180° |
| Min Door Thickness: | 20mm | Service Life: | ＞5 Years |
| High Light: | soss concealed hinges,soss hidden hinges |
||
High Sensory SOSS Invisible Hinge 218 With Antique Copper Surface Finish
SOSS Invisible Hinge 218 Installation method
The narrower side is installed on the door and the wider side is installed on the door frame. then the two machine-processed rice screws on the door side are to adjust the left-and-right direction. while the inner two cap head screws on the frame side are to adjust the up-and-down direction and the outer two cup head screws on the frame side are to adjust the front-and-back direction, that is also can be understood as the flatness degree.
SOSS Invisible Hinge 218 details:
| 1, Size(WxLxGap) | 13x60x9mm. |
| 2, Min door thickness | 20mm. |
| 3, Product material | Casting Zinc alloy body, SS 201 connecting arms. |
| 4, Available Finishes |
Antique Copper, Satin Chrome, Satin Nickel, Antique Brass, Gold plated, PVD |
| 5, Name | WHigh Sensory SOSS Invisible Hinge 218 With Antique Copper Surface Finish |
| 6, Residential&Commercial Usage | Both available. |
| 7, Weight loading | 20 kgs/3 pcs. |
| 8, Open degree | 180°. |
| 9, Distinguishing for left or right | No. |
| 10, Quality testing&certificate | SGS, CNAS, MA, AL, Work Safety Standardization. |
| 11, Advantages | Drilling to be invisible installation,Concealed for a complete flush look, high sensory, durable and silent. |
Queations you may ask:
1, Samples' free or charged including the express cost?
Samples' cost less than USD 50.00 will not be charged, express cost on customer's side.
2, Factory area and number of employees?
5000 ㎡&100 workers
3, Delivery time for regular orders?
We always keep s small amount of stock(around 1000 pcs for each sizes), and for mass orders, certainly finish from 15 days up to 30 days.
4, Your capacity for one month?
Up to 500,000 pcs accoding to different sizes.
5, Your annual sales value?
In 2017, exceed 6 million dollars.
6, How will you treat on after-sale quality problems?
If responsibility confirmed on our side, we will make full compensation for free including shipping charge.

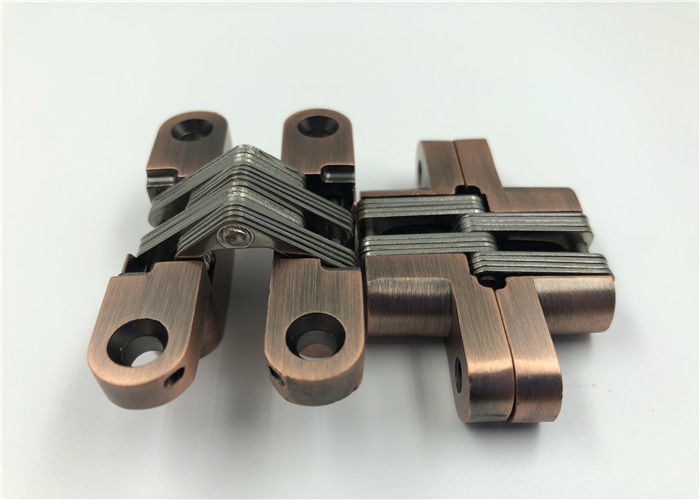

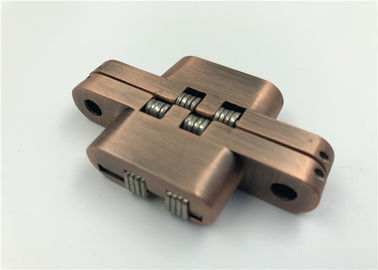

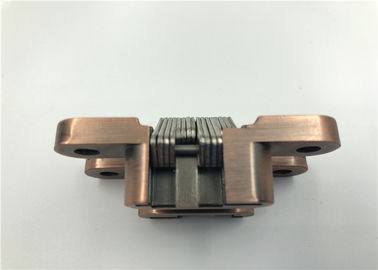

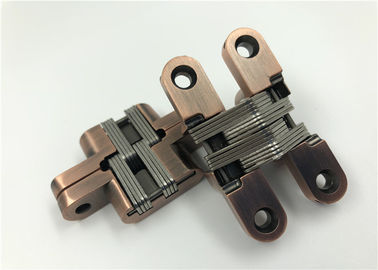

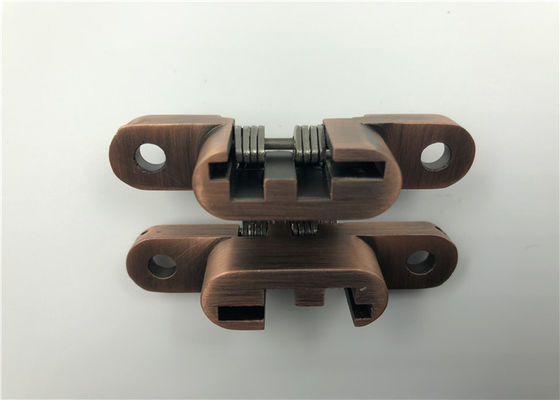

Real Photos in Antique Copper color:
