Product Details:
|
| Name: | Mortise Mount Invisible Hinge | Advantages: | Adjustable Without Disassemblying Door Leaves,Drilling To Be Invisible Installation,Concealed For A Complete Flush Look, Top Range Quality, High Sensory, Durable And Silent |
|---|---|---|---|
| Weight Loading: | 60 Kgs/3 Pcs | Material: | Zinc Alloy |
| Surface Finish: | Pearl Chrome | Open Degree: | 180° |
| Adjustment Range: | Up&down±3mm, Left&right: ±3mm, Front&back:±1.0mm. | Min Door Thickness: | 40mm |
| Max Door Width: | 1000mm | Door Higher Than 2100mm: | Suggest To Fix 4 Hinges |
| High Light: | heavy duty hidden door hinges,180 degree hidden hinge |
||

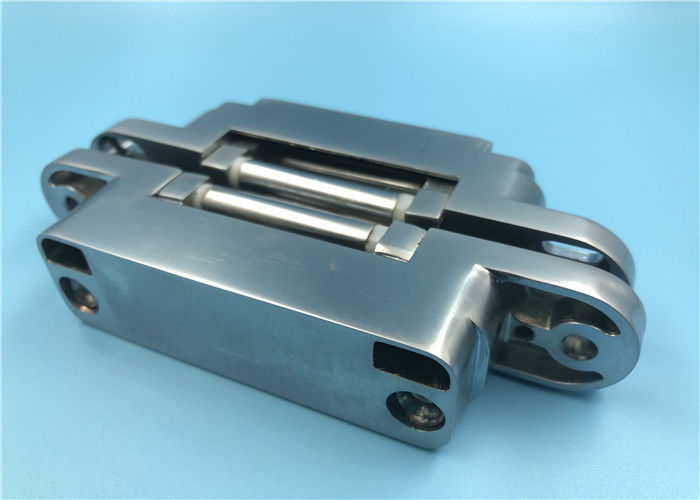

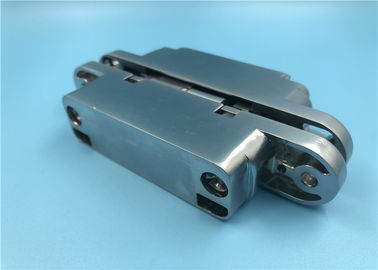

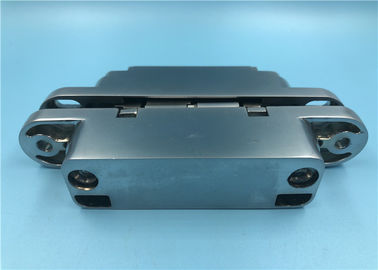

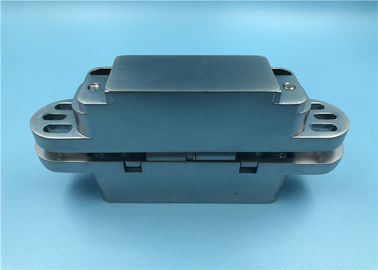

Pearl Chrome Mortise Mount Invisible Hinge For Left And Right Open
Product Introduction
(1) Good quality of conceal hinge
(2) with reasonable price
(3) Every process will be checked by responsible QC which insure the products' quality
(4) Spring hinge with ordinary or export packing, Goods will be packed safe and carefully
Item No.: BG005 Mortise Mount Invisible Hinge
Mortise Mount Invisible Hinge Features:
| Size(Width x Height): | 28*135*140mm |
| Material: | Zinc alloy |
| Adjustment range | up&down±1.5mm, left&right: ±1.0mm, front&back:±1.0mm. |
| Popular surface finishes: | Pearl Chrome /Satin Nickel / Satin Chrome / SS Arms / Satin Brass / Chrome Painted/ Gold Painted. |
| Main usage: | Wooden door, Metal door, Folding door, Concealed door, Interior door etc |
| Weight loading: | 60kgs/3pcs. |
| Distinguishing for left or right: | No. |
| Min door thickness: | 40mm |
| Open&Close: | 100,000 |
| Service life: | ＞5 years |
| Advantages: | Adjustable without disassemblying door leaves,Drilling to be invisible installation,Concealed for a complete flush look,high quality, high sensory, durable and silent |
Invisible, but not unsightly.
Our 3D Adjustable Concealed hinge has been going from being a welcome technologically superior substitute for other "invisible" hinges when the odd concealed door was detailed, to one that is being throughout a project's interior and exterior doors. This acceptance has grown from a realization by contractor, millworker and architect alike of the significant cost savings that an adjustable hinge can bring to the project.
Mortise Mount Invisible Hinge details
