Product Details:
|
| Application: | Wooden Door, Metal Door | Advantages: | High Security |
|---|---|---|---|
| Weight Loading: | 60 Kgs/3 Pcs | Material: | Zinc Alloy |
| Surface Finish: | Pearl Chrome | Open Degree: | 180° |
| Pin: | Riveted Hinge Pin | Min Door Thickness: | 40mm |
| Max Door Width: | 1000mm | Door Higher Than 2100mm: | Suggest To Fix 4 Hinges |
| High Light: | 180 degree hidden hinge,concealed gate hinges |
||

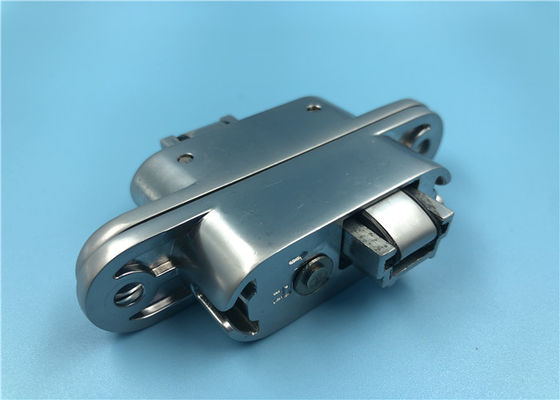

High Security Mortise Mount Invisible Hinge With Riveted Hinge Pin
Mortise Mount Invisible Hinge Features
Security - When closed, the SOSS Invisible Hinge cannot be seen or tampered with. When opened, the riveted hinge pin is non-removable.
Safety - The moving pivot point remains inside the hinge during travel until fully opened, eliminating an external pinch point on the back side of the door.
Strength - The installed hinge is firmly anchored in a deep, full mortise, which assists the screws in supporting the door, assuring a stronger, more rigid installation.
Superior Construction - SOSS Invisible Hinges are designed to give dependable operation for years. Standard hinges are made of high strength plated steel and heavy duty zinc alloy castings.
Mortise Mount Invisible Hinge Introduction:
| Size(Width x Height): | 23*95mm |
| Material: | Zinc alloy |
| Adjustment range | up&down±1.5mm, left&right: ±1.0mm, front&back:±1.0mm. |
| Popular surface finishes: | Pearl Chrome/Satin Chrome / SS Arms / Satin Brass / Chrome Painted/ Gold Painted. |
| Main usage: | Wooden door, Metal door, Folding door, Concealed door, Interior door etc |
| Weight loading: | 60kgs/3pcs. |
| Distinguishing for left or right: | No. |
| Min door thickness: | 40mm |
| Open&Close: | 100,000 |
| Service life: | ＞5 years |
| Advantages: | Adjustable without disassemblying door leaves,Drilling to be invisible installation,Concealed for a complete flush look,high quality, high sensory, durable and silent |
Installation method
The narrower side is installed on the door and the wider side is installed on the door frame. then the two machine-processed rice screws on the door side are to adjust the left-and-right direction. while the inner two cap head screws on the frame side are to adjust the up-and-down direction and the outer two cup head screws on the frame side are to adjust the front-and-back direction, that is also can be understood as the flatness degree.
Mortise Mount Invisible Hinge details
