Silent Concealed Hinges For Interior Doors , Flexible Hidden Gate Hinges

Silent Concealed Hinges For Interior Doors , Flexible Hidden Gate Hinges
Silent Concealed Hinges For Interior Doors , Flexible Hidden Gate Hinges
Silent Concealed Hinges For Interior Doors , Flexible Hidden Gate Hinges Silent Concealed Hinges For Interior Doors , Flexible Hidden Gate Hinges Silent Concealed Hinges For Interior Doors , Flexible Hidden Gate Hinges Silent Concealed Hinges For Interior Doors , Flexible Hidden Gate Hinges Silent Concealed Hinges For Interior Doors , Flexible Hidden Gate Hinges Silent Concealed Hinges For Interior Doors , Flexible Hidden Gate Hinges

Large Image :  Silent Concealed Hinges For Interior Doors , Flexible Hidden Gate Hinges

Product Details:
Place of Origin: Jiangmen, Guangdong
Brand Name: JKL
Certification: SGS,CNAS
Model Number: BG002
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: 1 pc/poly bag, 1 pc/inner white box, 40 pcs/carton
Delivery Time: 15 days.(A small amount of stock all the time)
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 10,000 pcs/month

Silent Concealed Hinges For Interior Doors , Flexible Hidden Gate Hinges

Description
Main Usage: Interior Doors Advantages: Silent
Feature: Flexible Material: Zinc Alloy
Surface Finish: Pearl Chrome Open Degree: 180°

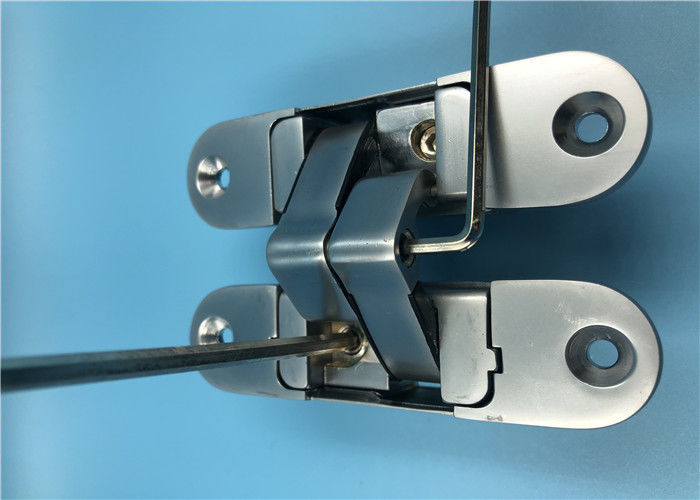

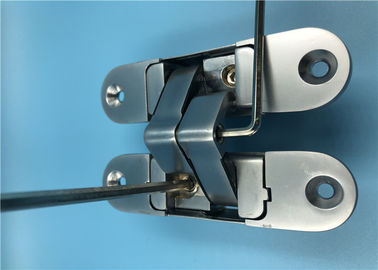

Adjustment Range: Up&down±1.5mm, Left&right: ±1.0mm, Front&back:±1.0mm. Min Door Thickness: 40mm
Max Door Width: 1000mm Door Higher Than 2100mm: Suggest To Fix 4 Hinges
High Light:

adjustable soss hinges

,

invisible cabinet hinges

Silent Concealed Hinges For Interior Doors , Flexible Hidden Gate Hinges



Concealed Hinges For Interior Doors Features



self closing

Invisible

Anti-rust,durable

Easy to install and remove

Convenient to clean



Concealed Hinges For Interior Doors Parameters:



 Size(Width x Height):  30*110mm
 Material:  Zinc alloy
 Adjustment range  up&down±1.5mm, left&right: ±1.0mm, front&back:±1.0mm.
 Popular surface finishes:  Pearl Chrome / SS Arms / Satin Chrome / Satin Brass / Chrome Painted/ Gold Painted.
 Main usage:  Wooden door, Metal door, Folding door, Concealed door, Interior door etc
 Weight loading:  60kgs/3pcs.
 Distinguishing for left or right:  No.
 Min door thickness:  40mm
 Open&Close:  100,000
 Service life:  >5 years
 Advantages:  Adjustable without disassemblying door leaves,Drilling to be invisible installation,Concealed for a complete flush look,high quality, high sensory, durable and silent



Concealed Hinges For Interior Doors Usage



suitable for security door, entrance door, antithetic door, anti-fire door, wooden door

and interior door wear resistant discs without lubrication oil rotate flexibly and test for

over 200,000 cycles without abrasion disregard the left installation and right installation.



Invisible, but not unsightly.


Our 3D Adjustable Concealed hinge has been going from being a welcome technologically superior substitute for other "invisible" hinges when the odd concealed door was detailed, to one that is being throughout a project's interior and exterior doors. This acceptance has grown from a realization by contractor, millworker and architect alike of the significant cost savings that an adjustable hinge can bring to the project.

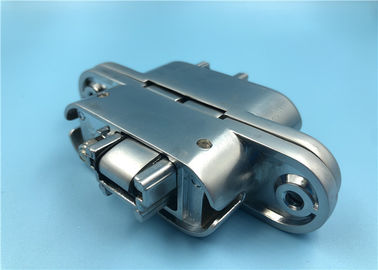

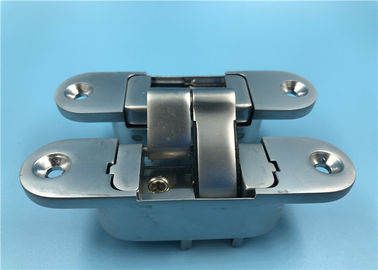

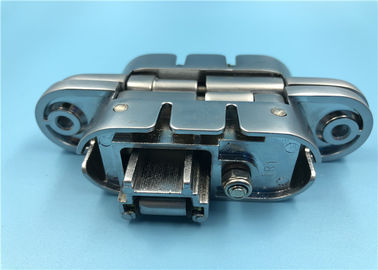

Concealed Hinges For Interior Doors details



Silent Concealed Hinges For Interior Doors , Flexible Hidden Gate Hinges 0

Silent Concealed Hinges For Interior Doors , Flexible Hidden Gate Hinges 1
