Product Details:
|
| Name: | 3D Concealed Hinges | Advantages: | Medium Duty |
|---|---|---|---|
| Weight Loading: | 60 Kgs/3 Pcs | Material: | Zinc Alloy |
| Surface Finish: | SS Arms | Open Degree: | 180° |
| Adjustment Range: | Up&down±1.5mm, Left&right: ±1.0mm, Front&back:±1.0mm. | Min Door Thickness: | 40mm |
| Max Door Width: | 1000mm | Door Higher Than 2100mm: | Suggest To Fix 4 Hinges |
| High Light: | adjustable soss hinges,invisible cabinet hinges |
||

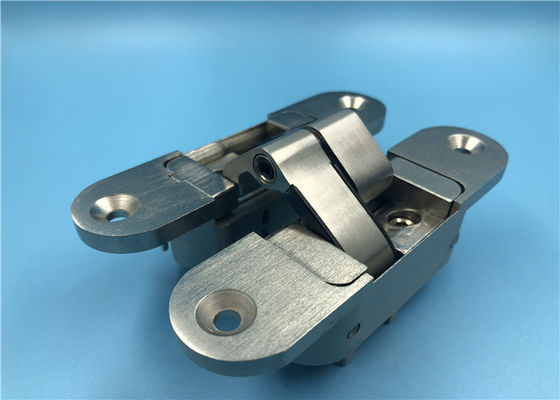

Medium Duty 3D Concealed Hinges With Stainless Steel Arms 30*110mm
3d Adjustable Door Hinges introduction:
This Soss medium duty hinge is completely concealed when the door is closed.
Made from high strength plated steel and heavy duty zinc alloy castings.
Beautiful when open...Invisible when closed. Soss Mortise Mount Invisible hinges for designed to provide security, strength and safety.
Minimum Door Thickness: 30mm
Key Features: Invisible from either side when closed, Moving pivot point remains inside hinge during travel, Deep mortise of hinge assures a strong installation
Product Finish: Satin Chrome
Features:
| Size(Width x Height): | 30*110mm |
| Material: | Zinc alloy |
| Adjustment range | up&down±1.5mm, left&right: ±1.0mm, front&back:±1.0mm. |
| Popular surface finishes: | SS Arms / Satin Chrome / Satin Brass / Chrome Painted/ Gold Painted. |
| Main usage: | Wooden door, Metal door, Folding door, Concealed door, Interior door etc |
| Weight loading: | 60kgs/3pcs. |
| Distinguishing for left or right: | No. |
| Min door thickness: | 40mm |
| Open&Close: | 100,000 |
| Service life: | ＞5 years |
| Advantages: | Adjustable without disassemblying door leaves,Drilling to be invisible installation,Concealed for a complete flush look,high quality, high sensory, durable and silent |
Zinc Alloy Adjustable 3D Concealed Hinge Introduction:
Designers spend time detailing an "invisible" door, they may go through endless rounds of picking veneer to match the grain exactly, and simply want to keep clean and dead-even gaps around their door panels. Because our hinge is adjustable in 3 dimensions large and heavy doors can be installed quickly, saving money for the millworker and installer and insuring it all looks sharp in the end. In reality, for detail-driven designers, nothing is ever really invisible. So, when you open that door, at the very least, the hinge better match the finish of the hardware on the rest of the project.
3D Concealed Hinges details
