Product Details:
|
| Name: | Concealed Gate Hinges | Advantages: | Adjustable Without Disassemblying Door Leaves,Drilling To Be Invisible Installation,Concealed For A Complete Flush Look, Top Range Quality, High Sensory, Durable And Silent |
|---|---|---|---|
| Weight Loading: | 60 Kgs/3 Pcs | Material: | Zinc Alloy Wings, Aluminum Arm. |
| Surface Finish: | Satin Brass | Open Degree: | 180° |
| Adjustment Range: | Up&down±1.5mm, Left&right: ±1.0mm, Front&back:±1.0mm. | Min Door Thickness: | 40mm |
| Max Door Width: | 1000mm | Door Higher Than 2100mm: | Suggest To Fix 4 Hinges |
| High Light: | adjustable soss hinges,invisible cabinet hinges |
||

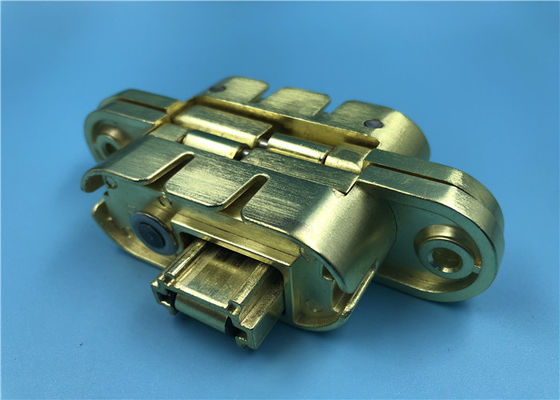

Satin Brass Concealed Gate Hinges / Industrial 180 Degree Door Hinge
JKL offers 3D Adjustable hinges in a wide range of premium quality finishes:
Including
Satin Chrome | Satin Nickel | Satin Stainless Steel (SSS)
Dark Umber (like a US 10B) | Traffic White | Matte Deep Black
Pearl Chrome | Polished Nickel (plated) | Brushed (Satin) Chrome (plated) | Polished Brass
Invisible, but not unsightly.
Our 3D Adjustable Concealed hinge has been going from being a welcome technologically superior substitute for other "invisible" hinges when the odd concealed door was detailed, to one that is being throughout a project's interior and exterior doors. This acceptance has grown from a realization by contractor, millworker and architect alike of the significant cost savings that an adjustable hinge can bring to the project.
easy to install: For millworkers and contractors who have used non-adjustable invisible hinges in the past and have wrestled with hanging these doors, especially heavier ones, 3D Adjustable concealed hinges will be a revelation. With a hex key, you can tweak the door leaf into perfect alignment and walk away knowing that when the building settles you won't need to return to take the door off and take a planer to it, or worse.
Features:
| Size(Width x Height): | 30*110mm |
| Material: | Satin Brass |
| Adjustment range | up&down±1.5mm, left&right: ±1.0mm, front&back:±1.0mm. |
| Popular surface finishes: | Satin Brass Chrome Painted/ Gold Painted. |
| Main usage: | Wooden door, Metal door, Folding door, Concealed door, Interior door etc |
| Weight loading: | 60kgs/3pcs. |
| Distinguishing for left or right: | No. |
| Min door thickness: | 40mm |
| Open&Close: | 100,000 |
| Service life: | ＞5 years |
| Advantages: | Adjustable without disassemblying door leaves,Drilling to be invisible installation,Concealed for a complete flush look,high quality, high sensory, durable and silent |
3D Concealed Hinges details
