Product Details:
|
| Name: | Self Closing SOSS Invisible Hinge With Spring Inside | Advantages: | Slef Closing, Spring Closing, High Weight Loading. |
|---|---|---|---|
| Size Of Body: | 25x118mm | Material: | Casting Zinc Alloy Body, SS 201 Connecting Arms&spring |
| Surface Finishes: | Satin Chrome | Spring Force: | Fixed |
| Min Door Thickness: | 35mm | Weight Loading: | 80 Kgs/3 Pcs |
| Service Life: | ＞5 Years | 90° Location: | Yes |
| High Light: | concealed mortise hinge,adjustable soss type hinges |
||
High Performance Invisible Spring Hinges Adjustable Concealed Hinges Anti Corrosive
| Item No.: | AG009 |
| Name: | Self closing Invisible Spring Hinge for Wooden door Passing door with Spring inside |
| Width*Length*Gap | 25x118x18mm. |
| Material | Zinc alloy body, SS 201 arms&Spring |
| Avaliable Finishes | Satin Nickel, Satin Chrome, Antique Brass, Antique Copper, PVD. |
| Weight loading | 80 kgs/3 pcs. |
| Main usage | Wooden door, Passing door, Fire door, Folding door. |
| Open degree | 180°. |
| MOQ | 100 pcs. |
| Regular production time | 20 work days. |
| Service life | ＞5 years. |
| Nearest ports | Jiangmen, Guangzhou, Shenzhen. |
| Characteristic | Self closing, Concealed installation, Heavy duty loading. |
Features
Spring closing - Using a sping inside the hinge body, this hinge can be self closing when open degree is less than 90°, and self opening to 180° when open more than 90°.
Security - When closed, the SOSS Invisible Hinge cannot be seen or tampered with. When opened, the riveted hinge pin is non-removable.
Safety - The moving pivot point remains inside the hinge during travel until fully opened, eliminating an external pinch point on the back side of the door.
Strength - The installed hinge is firmly anchored in a deep, full mortise, which assists the screws in supporting the door, assuring a stronger, more rigid installation.
Superior Construction - SOSS Invisible Spring Hinges are designed to give dependable operation for years. Standard hinges are made of high strength plated steel and heavy duty zinc alloy castings.
What can you find here?
At concealedinvisiblehinge.com, we have a great selection of invisible or hidden hinges. Whatever you want to call them, they’re hard to see! No, just kidding, they’re called invisible hinges because once installed and the door is in the closed position, you can’t see them unless you’re Superman of course.We stock invisible hinges by different colours&sizes. Joe Soss invented the Soss hidden hinge over a century ago when the idea struck him after he stumbled over a protruding cargo hold hinge on a ship. 100 years later, Soss hinges are still in demand. Well,we can not compare to their long term on business, but we are confident of that our Invisible Hinges are near to their quality, but much less on the cost. If you are not focusing on the brand, we believe that our hinges are the most reasonable choice for you!
Queations you may ask:
1, Samples' free or charged including the express cost? |
2, Factory area and number of employees? |
3, Delivery time for regular orders? |
4, Your capacity for one month? |
5, Your annual sales value? |
6, How will you treat on after-sale quality problems? |

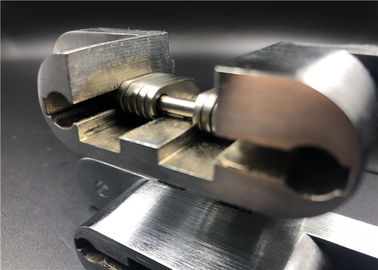

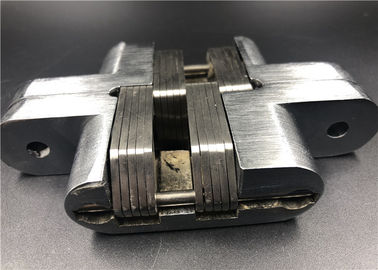

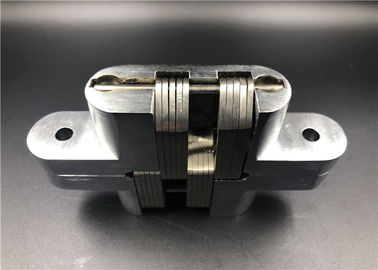

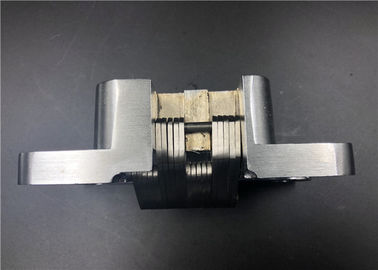

Real photos in Satin Chrome finish:
