Product Details:
|
| Main Usage: | Cupboard, Wardrobe, Bookcase, Bathroom Cabinet Etc | Advantages: | Invisible Installation,Complete Flush Look, High Sensory, Durable And Silent |
|---|---|---|---|
| Weight Loading: | 20 Kgs/3 Pcs | Service Life: | ＞5 Years |
| Height*Width*Gap: | 13x60x9mm | Material: | Casting Zinc Alloy Body, SS Connecting Arms. |
| Surface Finish: | Satin Chrome | Open Degree: | 180° |
| Min Door Thickness: | 20mm | Distinguishing For Left Or Right: | No |
| High Light: | heavy duty hidden door hinges,concealed gate hinges |
||

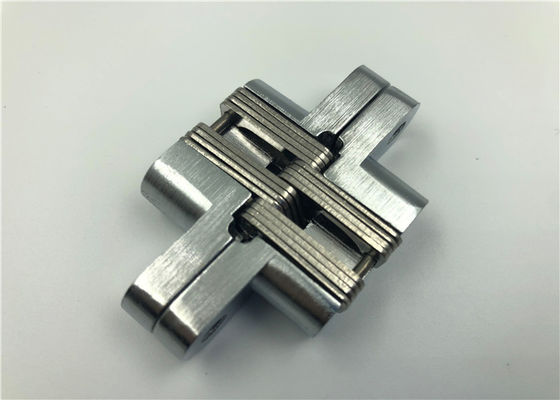

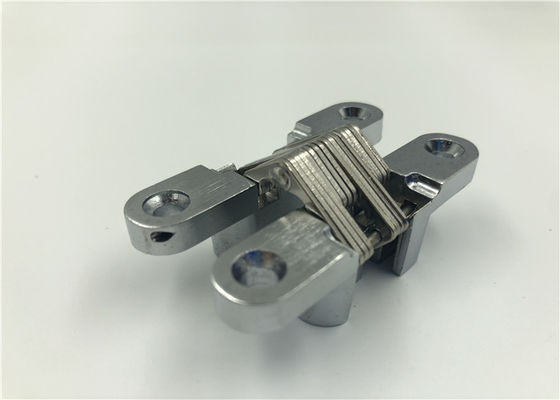

Durable Mortise Mount Heavy Duty Cabinet Door Hinges Soss Hidden Hinges 13x60mm
Item No.: AG006
Height x Wing width x gap between wings=13x60x9mm
Name: 13x60mm Mortise Mount Invisible Hinge for Cupboard Wardrobe door
| 1, Size(HxWxGap) | 13x60x9mm. |
| 2, Min door thickness | 20mm. |
| 3, Product material | Casting Zinc alloy body, SS 201 connecting arms. |
| 4, Popular surface finishes |
Satin Chrome, Satin Nickel, Antique brass, Antique copper, PVD. |
| 5, Main usage | Cupboard, Wardrobe, Bookcase, Bathroom cabinet etc. |
| 6, Residential&Commercial Usage | Both available. |
| 7, Weight loading | 20 kgs/3 pcs. |
| 8, Open degree | 180°. |
| 9, Distinguishing for left or right | No. |
| 10, Quality testing&certificate | SGS, CNAS, MA, AL, Work Safety Standardization. |
| 11, Advantages | Drilling to be invisible installation,Concealed for a complete flush look, high sensory, durable and silent. |
Mortise Mount Invisible Hinge is the best choice for your Cabinets:
Mortise Mount Invisible Hinges are designed to be invisible when the cabinet is closed. They are hidden inside the door and the frame so that only a small part is visible when the door is open. These hinges are expensive and difficult to install. They require extensive shrouds cut in the door and the frame, which is a complex task that is best, left to master carpenters. Mortise Mount Invisible Hinges are used in high-end cabinetry, and are designed for all types of cabinet designs.
Mortise Mount Invisible Hinges create a fold in the paper template with door hardware in the annotated line. Poke a hole through the drill bit indicators in the template with a pencil. Use the template to guide the shape holes in the door with a drill fitted with drills of appropriate size.
Mortise Mount Invisible Hinges, remove wood material left by the drill with a chisel. This is a call created a shroud so that the hinge can fit into the slot in the door. Place the flat side of chisel on the side of the opening of the hinge. Use a hammer to remove excess wood. Setting half the cutting hinge in the door mortise. Insert the screws into the holes you drilled and secure with a screwdriver.
Reasons to buy Mortise Mount Invisible Hinges from us:
1, More than 18 years of professional manufacturing experience on Invisible Hinges;
2, Strict product quality control by advanced equipment and excellent R&D Team;
3, Quick and timely delivery;
4, Proper and sturdy packing;
5, Small order welcomed(1-100 pcs no problem);
6, Perfect after-sales service and product use tracking;
7, More than 99% of the praise rate through the 18 years.
Queations you may ask:
|
1, Samples' free or charged including the express cost? Samples' cost less than USD 50.00 will not be charged, express cost on customer's side. |
|
2, Factory area and number of employees? 5000 ㎡&100 workers |
|
3, Delivery time for regular orders?
We always keep s small amount of stock(around 1000 pcs for each sizes), and for mass orders, certainly finish from 15 days up to 30 days. |
|
4, Your capacity for one month?
Up to 500,000 pcs accoding to different sizes. |
|
5, Your annual sales value? In 2017, exceed 6 million dollars. |
|
6, How will you treat on after-sale quality problems?
If responsibility confirmed on our side, we will make full compensation for free including shipping charge. |
Satin Chrome Photos' show:
