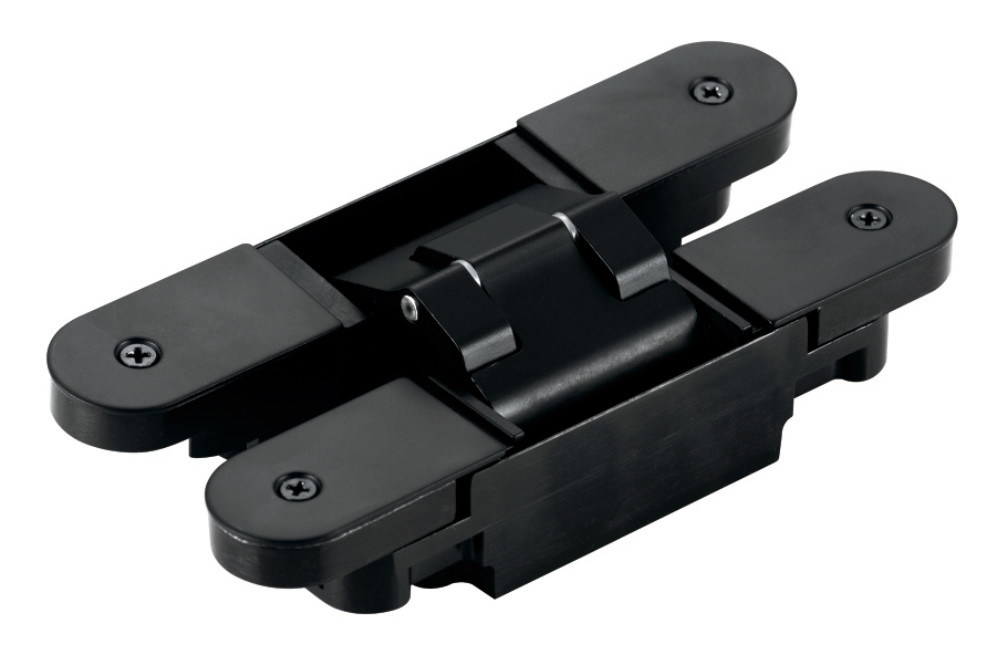

29x160 mm Zinc Alloy Adjustable Concealed Hinges For Wooden Metal Door

29x160 mm Zinc Alloy Adjustable Concealed Hinges For Wooden Metal Door
29x160 mm Zinc Alloy Adjustable Concealed Hinges For Wooden Metal Door 29x160 mm Zinc Alloy Adjustable Concealed Hinges For Wooden Metal Door 29x160 mm Zinc Alloy Adjustable Concealed Hinges For Wooden Metal Door 29x160 mm Zinc Alloy Adjustable Concealed Hinges For Wooden Metal Door

Large Image :  29x160 mm Zinc Alloy Adjustable Concealed Hinges For Wooden Metal Door

Product Details:
Place of Origin: Jiangmen, Guangdong
Brand Name: JKL
Certification: SGS,CNAS
Model Number: BG009
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Negotiable
Packaging Details: 1 pc/poly bag, 2 pcs/inner white box, 20 pcs/carton
Delivery Time: 15 days.(A small amount of stock all the time)
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 10,000 pcs/month

29x160 mm Zinc Alloy Adjustable Concealed Hinges For Wooden Metal Door

Description
Main Usage: Wooden Door, Metal Door, Folding Door, Swing Door, Heavy Duty Door Advantages: Adjustable Without Disassemblying Door Leaves,Drilling To Be Invisible Installation.
Weight Loading: 60 Kgs/2 Pcs, 80 Kgs/3 Pcs Size: 29x160mm
Material: Zinc Alloy+Aluminum+SS Surface Finish: Antique Brass, Satin Chrome, Polished Brass, Black, Etc
Open Degree: 180° Adjustment Range: Up&down±3.0mm, Left&right: ±3.0mm, Front&back:±1.5mm.
Min Door Thickness: 40mm Max Door Width: 1000mm
Distinguishing For Left Or Right: No Door Higher Than 2100mm: Suggest To Fix 4 Hinges
High Light:

3d adjustable door hinges

,

adjusting hidden hinges

29x160 mm Zinc Alloy Adjustable Concealed Hinges For Wooden Metal Door



Item No.: BG009

Name: 29x160mm Zinc Alloy 3D Adjustable Concealed Hinge for Wooden Metal Door

Details:

 Size(Width x Height):  29x160mm
 Material:  Casting Zinc Alloy
 Adjustment range  up&down±3.0mm, left&right: ±3.0mm, front&back:±1.0mm.
 Popular surface finishes:  Satin Chrome/ Antique Brass/ Antique Copper/ Pearl Chrome/ Black/ PVD.
 Main usage:  Wooden door, Metal door, Folding door, Concealed door, Interior door etc
 Weight loading:  60 kgs/2 pcs. 80 kgs/3 pcs
 Distinguishing for left or right:  No.
 Min door thickness:  40mm
 Open&Close:  100,000
 Service life:  >5 years
 Fire rating  >1.5 hours
 Advantages:  Adjustable without disassemblying door leaves,Drilling to be invisible installation,Concealed for a complete flush look,high quality, high sensory, durable and silent



Zinc Alloy 3D Adjustable Concealed Hinge Introduction:

Compared to SUS Adjustable Concealed Hinge, BG009 is made by Casting Zinc alloy, the weight loading is a little less than SUS ones: 80-120 kgs. but the cost is much less too. So customer can choose according to your door size and weight. If your door is not too heavy and wide, BG009 is your better choice.



Our Adjustable Concealed Door Hinge BG009 is for use in metal or wood applications, and it is universal for right&left open doors. This hinge has been tested by 100,000 times on open&close(weight loading 80 kgs/2 pcs). Usually we suggest to install 3 pcs of hinges/door. door size: Minimum thickness 40mm, Max width 1000mm, max height 2000mm. If the door height is more than 2100, please use 4 hinges.



Use at least one hinge for every 20" of door height or portion thereof, or one hinge for every 100 lbs. or fraction thereof, whichever calculation demand more hinges.



Made in Jiangmen Guangdong CHINA, our 3D Adjustable Concealed Hinges are made from 20-30mm on width, 95-160mm on height, Material from SUS to Zinc alloy. The most comprehensive concealed hinge system for premium flush doors. Easily adjustable in 3-Dimensions, These 3D Adjustable hinges bring an unparalleled level of performance, precision and control over what has previously been a difficult detail to build and maintain. There is no other hinge system in the world that provides the solutions and



At concealedinvisiblehinge.com, we have a great selection of invisible or hidden hinges. Whatever you want to call them, they’re hard to see! No, just kidding, they’re called invisible hinges because once installed and the door is in the closed position, you can’t see them unless you’re Superman of course.We stock invisible hinges by different colours&sizes. Joe Soss invented the Soss hidden hinge over a century ago when the idea struck him after he stumbled over a protruding cargo hold hinge on a ship. 100 years later, Soss hinges are still in demand. Well,we can not compare to their long term on business, but we are confident of that our Invisible Hinges are near to their quality, but much less on the cost. If you are not focusing on the famous brand, we believe that our hinges are the most reasonable choice for you!



Drawing:

29x160 mm Zinc Alloy Adjustable Concealed Hinges For Wooden Metal Door 0

Real Photos:

29x160 mm Zinc Alloy Adjustable Concealed Hinges For Wooden Metal Door 1

29x160 mm Zinc Alloy Adjustable Concealed Hinges For Wooden Metal Door 2

29x160 mm Zinc Alloy Adjustable Concealed Hinges For Wooden Metal Door 3
