SOSS Spring Closer Mortise Mount Invisible Hinge For Wooden Door Channel Gate

Certification
Good quality SOSS Invisible Hinge for sales
Good quality SOSS Invisible Hinge for sales
We have finished our new hotel last Friday. Your hinges are fitted very well!

—— Gabriella

We received the 3D hinges, they looks nice after installation, and get a good performance on weight loading. We appreciated your effort,Thanks!

—— Stephen

Yes, the hinges are working well. I will defiantly keep you in mind for future products My thanks and regards

—— Russell

I'm Online Chat Now

SOSS Spring Closer Mortise Mount Invisible Hinge For Wooden Door Channel Gate

China SOSS Spring Closer Mortise Mount Invisible Hinge For Wooden Door Channel Gate supplier
SOSS Spring Closer Mortise Mount Invisible Hinge For Wooden Door Channel Gate supplier SOSS Spring Closer Mortise Mount Invisible Hinge For Wooden Door Channel Gate supplier SOSS Spring Closer Mortise Mount Invisible Hinge For Wooden Door Channel Gate supplier SOSS Spring Closer Mortise Mount Invisible Hinge For Wooden Door Channel Gate supplier

Large Image :  SOSS Spring Closer Mortise Mount Invisible Hinge For Wooden Door Channel Gate

Product Details:

Place of Origin: Jiangmen, Guangdong
Brand Name: JKL
Certification: Fire-rating,SGS,CNAS
Model Number: CG007

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: 1 pc/poly bag, 2 pcs/inner white box, 20 pcs/carton.
Delivery Time: 30 days.(A small amount of stock all the time)
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 30,000 pcs/month.
Contact Now
Detailed Product Description
Main Usage: Fireproof Door, Self Closing Door, Channel Gate Advantages: Fireproof, Spring Closing.
Weight Loading: 80 Kgs/3 Pcs Size: 25x118x18mm
Material: Casting SS 304 Body, SS 304/201 Connecting Arms Popular Surface Finishes: Satin, Polished, AB, AC, Black, PVD
Open Degree: 180° Min Door Thickness: 35mm
90° Location: Yes Spring Force: Fixed

SOSS Spring Closer Mortise Mount Invisible Hinge For Wooden Door Channel Gate





Model No.: CG007
Width*Length*Gap 25x118x18mm.
Material SUS 304 body, SUS 201 arms.
Surface Finishes Satin Stainless steel; Polished; Antique Brass, Antique Copper, PVD.
Weight loading

80 kgs/3 pcs.

Main usage Fireproof door, Wooden door, Self closing door
Open degree 180°.
MOQ 100 pcs.
Regular production time 30 days.
Nearest sea port Jiangmen, Shenzhen.
Nearest air port Guangzhou, Shenzhen.
Characteristic Fire Proof more than 1.50 hours, Spring self closing function.Concealed for a complete flush look,high quality, high sensory, durable and silent.



Application
Interior or Exterior Doors
1-3/4" Minimum Door Thickness
Can be utilized in combination with standard SOSS invisible hinges

Features:

The SOSS Invisible Spring Close gives you a spring closer that is totally invisible from either side when the door is closed. When the door is open, you see only the hinge face and links.

The closure rate is Non-adjustable, and does not require removal of the spring closer. Installation can be either inside the door itself or inside the door jamb. Allow one spring closer for each 75 lbs. of door weight for all spring closers.



Reasons too choose JINKAILI Mortise Mount Invisible Hinges:

Custom Items
Non-Stock items comprise half our business!
• Modified Standards Many secondary operations are available for customization: cut-to-length, holes, notches, forming and offsets, fasteners, springs and finishes.
• New Designs With our Computer Aided Design Department and generations of experience in the field, we can quickly provide custom designs and prototypes.

Human Touch
Just as important as our advanced technology is our commitment to providing the highest level of personal service. Guden employees, representatives and distributors will always respond quickly, courteously and effectively to all your needs.

Automation
To give you an unmatched level of service, we employ a fully automated, integrated operations management system that enables us to rapidly fill all your orders. Our automated inventory control system ensures that the products you're looking for are always in stock, in a variety of materials and finishes to match your requirements. And with our integrated communication system, we'll address your faxes and emails promptly and efficiently. But there's no substitute for real human beings in customer support, so a lot of this automation technology is used to enable our Customer Service Representatives to answer any question, while on the phone with you.

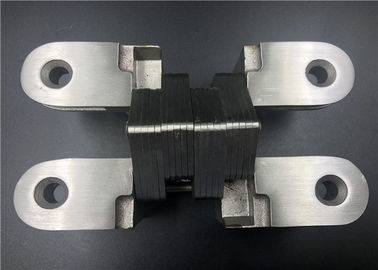

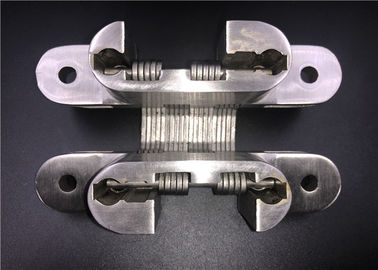

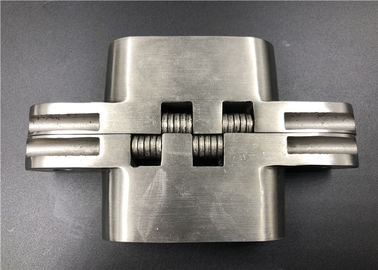

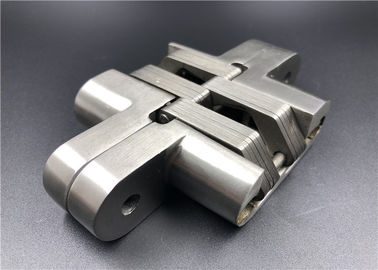

Real photos in Satin finish:

SOSS Spring Closer Mortise Mount Invisible Hinge For Wooden Door Channel GateSOSS Spring Closer Mortise Mount Invisible Hinge For Wooden Door Channel GateSOSS Spring Closer Mortise Mount Invisible Hinge For Wooden Door Channel Gate
