Product Details:
|
| Type: | Mortise Mount Invisible Hinge | Advantages: | Adjustable Without Disassemblying Door Leaves,Drilling To Be Invisible Installation,Concealed For A Complete Flush Look, Top Range Quality, High Sensory, Durable And Silent |
|---|---|---|---|
| Weight Loading: | 60 Kgs/3 Pcs | Material: | Zinc Alloy |
| Surface Finish: | Satin Chrome | Open Degree: | 180° |
| Adjustment Range: | Up&down±1.5mm, Left&right: ±1.0mm, Front&back:±1.0mm. | Min Door Thickness: | 40mm |
| Max Door Width: | 1000mm | Door Higher Than 2100mm: | Suggest To Fix 4 Hinges |
| High Light: | heavy duty hidden door hinges,concealed gate hinges |
||

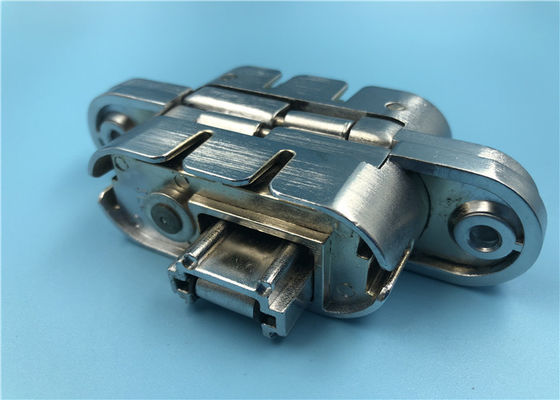

Satin Chrome Mortise Mount Invisible Hinge With Left Open 30*110mm
Something about Mortise Mount Invisible Hinge
Our Mortise Mount Invisible Hinge is for use in metal or wood applications. This full size door hinge will provide superior appearance and
durability. These hinges are used where compact size, smooth operation, and flush fit are necessary Concealed Hinges open a full 180° and are a single action hinge. Multiple Finishes Available!
The Underwriters Laboratories labeled the model #CG002B Invisible Hinge can be used on hollow metal, sheet metal, tin clad, steel composite or wood core
swinging type fire doors and frames with a 90 minute rating.
Use at least one fire-rated hinge for every 20" of door height or portion thereof, or one hinge for every 80 lbs. or fraction thereof, whichever calculation demand more hinges.
Mortise Mount Invisible Hinge Features:
| Size(Width x Height): | 30*110mm |
| Material: | Zinc alloy |
| Adjustment range | up&down±1.5mm, left&right: ±1.0mm, front&back:±1.0mm. |
| Popular surface finishes: | Satin Chrome / Satin Brass / Chrome Painted/ Gold Painted. |
| Main usage: | Wooden door, Metal door, Folding door, Concealed door, Interior door etc |
| Weight loading: | 60kgs/3pcs. |
| Distinguishing for left or right: | No. |
| Min door thickness: | 40mm |
| Open&Close: | 100,000 |
| Service life: | ＞5 years |
| Advantages: | Adjustable without disassemblying door leaves,Drilling to be invisible installation,Concealed for a complete flush look,high quality, high sensory, durable and silent |
FAQ
Q: Are you a OEM or ODM company?
A: In a word, we specialize in devising, manufacturing and trading.
Q: Could we obtian your product in other place except in GuangZhou?
A: Of course, our distributors spread in every corner of china. Such as, Changsha, Kunming, Shanghai, Shenzhen etc.
Q: Have your company involved foreign trade before?
A: Yes, our products are highly appreciated in europe, north american and southest asian markets.
Although our company are giving priority to domestic markets at present, oversea markets will be the focus of our work in near future.
Q: Why do I choose you?
A: Our company lay stress on the product quality contruction, moreover, mutal benefit and credit transaction is our company’s core philosophy. The most important thing is we can supply you the top quality products by untiring pursuit and unceasing innovation.
Q: How do your company manage your production site?
A: We strictly implement the 5S management (SEIRI,SEITON,SEISO,SETKETSU,SHTSUKE), which can improve product quality, reduce or eliminate the not conforming rate efficiently.
Q: Can we get your sample?
A: Of course. But I am sorry to say that you need to be charged with the freight and sample cost.
After all, only a paid sample is valuable and precious.
Q: Can I see your certification?
A: Of course. Because our certification is too much, we can not display evey one, we will give you at any time once you ask for it.
3D Concealed Hinges details
