Satin Nickel Mortise Mount Invisible Hinge For Light Duty Wooden Doors

China Satin Nickel Mortise Mount Invisible Hinge For Light Duty Wooden Doors supplier
Satin Nickel Mortise Mount Invisible Hinge For Light Duty Wooden Doors supplier Satin Nickel Mortise Mount Invisible Hinge For Light Duty Wooden Doors supplier Satin Nickel Mortise Mount Invisible Hinge For Light Duty Wooden Doors supplier Satin Nickel Mortise Mount Invisible Hinge For Light Duty Wooden Doors supplier Satin Nickel Mortise Mount Invisible Hinge For Light Duty Wooden Doors supplier

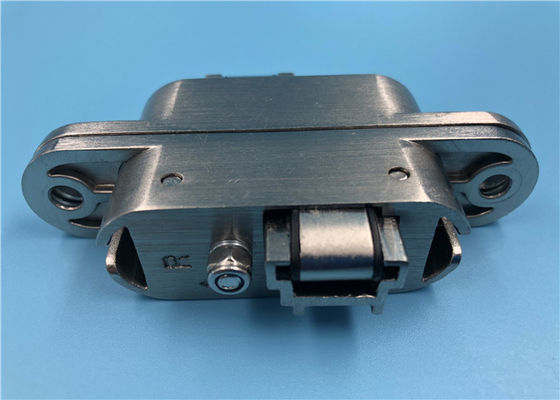

Large Image :  Satin Nickel Mortise Mount Invisible Hinge For Light Duty Wooden Doors

Product Details:

Place of Origin: Jiangmen, Guangdong
Brand Name: JKL
Certification: SGS,CNAS
Model Number: BG004

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: 1 pc/poly bag, 1 pc/inner white box, 40 pcs/carton
Delivery Time: 15 days.(A small amount of stock all the time)
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 10,000 pcs/month
Contact Now
Detailed Product Description
Main Usage: Light Duty Wooden Doors Advantages: Durable
Weight Loading: 60 Kgs/3 Pcs Material: Zinc Alloy
Surface Finish: Satin Nickel Open Degree: 180°
Adjustment Range: Up&down±1.5mm, Left&right: ±1.0mm, Front&back:±1.0mm. Min Door Thickness: 40mm
Max Door Width: 1000mm Door Higher Than 2100mm: Suggest To Fix 4 Hinges

Satin Nickel Mortise Mount Invisible Hinge For Light Duty Wooden Doors



Mortise Mount Invisible Hinges provide security and safety as well as a clean contemporary look:

  • When closed, hinges cannot be seen or tampered with - when open, riveted pins cannot be removed (hinge opens to 180°).
  • High-strength Stainless steel and heavy-duty zinc alloy castings.
  • Choose from Satin Chrome (US26D) Satin Brass (US4), Satin Nickel, Antique Brass, Antique copper finishes in a number of sizes.
  • To install, mortise out wood door and jamb using a drill bit and clean up with a chisel (paper template, instructions and mounting screws included).
  • Smaller hinges sold in carded pairs; 2-3/4 and larger hinges sold each.
  • For faster and more accurate hinge installation, the optional Router Guide Template ensures a perfect mortise:
  • Individually handcrafted template fastens to door and jamb with nails - guide pins locate the deep mortise.
  • Router, router bit and 3/4" O.D. guide bushing with lock nut required (not included).

Mortise Mount Invisible Hinge Features:



 Size(Width x Height): 23*95mm
 Material:  Zinc alloy
 Adjustment range  up&down±1.5mm, left&right: ±1.0mm, front&back:±1.0mm.
 Popular surface finishes:  Satin Nickel / Satin Chrome /Pearl Chrome/ SS Arms / Satin Brass / Chrome Painted/ Gold Painted.
 Main usage:  Wooden door, Metal door, Folding door, Concealed door, Interior door etc
 Weight loading:  60kgs/3pcs.
 Distinguishing for left or right:  No.
 Min door thickness:  40mm
 Open&Close:  100,000
 Service life:  >5 years
 Advantages:  Adjustable without disassemblying door leaves,Drilling to be invisible installation,Concealed for a complete flush look,high quality, high sensory, durable and silent





Invisible, but not unsightly.


Our 3D Adjustable Concealed hinge has been going from being a welcome technologically superior substitute for other "invisible" hinges when the odd concealed door was detailed, to one that is being throughout a project's interior and exterior doors. This acceptance has grown from a realization by contractor, millworker and architect alike of the significant cost savings that an adjustable hinge can bring to the project.





Mortise Mount Invisible Hinge details



Satin Nickel Mortise Mount Invisible Hinge For Light Duty Wooden Doors

Satin Nickel Mortise Mount Invisible Hinge For Light Duty Wooden Doors
