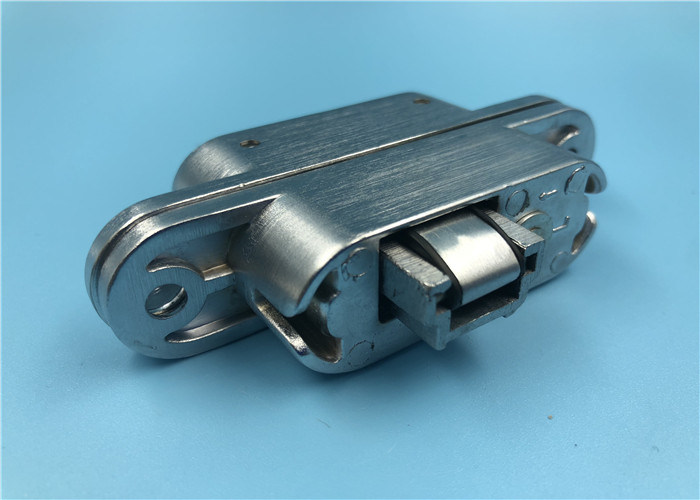

Multi Functional 3D Concealed Hinges With Different Surface Treatment

Multi Functional 3D Concealed Hinges With Different Surface Treatment
Multi Functional 3D Concealed Hinges With Different Surface Treatment
Multi Functional 3D Concealed Hinges With Different Surface Treatment Multi Functional 3D Concealed Hinges With Different Surface Treatment Multi Functional 3D Concealed Hinges With Different Surface Treatment Multi Functional 3D Concealed Hinges With Different Surface Treatment Multi Functional 3D Concealed Hinges With Different Surface Treatment Multi Functional 3D Concealed Hinges With Different Surface Treatment

Large Image :  Multi Functional 3D Concealed Hinges With Different Surface Treatment

Product Details:
Place of Origin: Jiangmen, Guangdong
Brand Name: JKL
Certification: SGS,CNAS
Model Number: BG003
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: 1 pc/poly bag, 1 pc/inner white box, 40 pcs/carton
Delivery Time: 15 days.(A small amount of stock all the time)
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 10,000 pcs/month

Multi Functional 3D Concealed Hinges With Different Surface Treatment

Description
Main Usage: Wooden Door, Metal Door Advantages: Multi Functional
Weight Loading: 60 Kgs/3 Pcs Material: Zinc Alloy
Surface Finish: Satin Chrome Open Degree: 180°
Adjustment Range: Up&down±1.5mm, Left&right: ±1.0mm, Front&back:±1.0mm. Min Door Thickness: 40mm
Max Door Width: 1000mm Name: 3D Concealed Hinges
High Light:

adjustable soss hinges

,

invisible cabinet hinges

Multi Functional 3D Concealed Hinges With Different Surface Treatment



3D Concealed Hinges Application


suitable for security door, entrance door, antithetic door, anti-fire door, wooden door

and interior door wear resistant discs without lubrication oil rotate flexibly and test for

over 200,000 cycles without abrasion disregard the left installation and right installation.



3D Concealed Hinges Features:



 Size(Width x Height):  23*95mm
 Material:  Zinc alloy
 Adjustment range  up&down±1.5mm, left&right: ±1.0mm, front&back:±1.0mm.
 Popular surface finishes:  Satin Chrome/Pearl Chrome / SS Arms / Satin Brass / Chrome Painted/ Gold Painted.
 Main usage:  Wooden door, Metal door, Folding door, Concealed door, Interior door etc
 Weight loading:  60kgs/3pcs.
 Distinguishing for left or right:  No.
 Min door thickness:  40mm
 Open&Close:  100,000
 Service life:  >5 years
 Advantages:  Adjustable without disassemblying door leaves,Drilling to be invisible installation,Concealed for a complete flush look,high quality, high sensory, durable and silent



3D Concealed Hinges Installation method



The narrower side is installed on the door and the wider side is installed on the door frame. then the two machine-processed rice screws on the door side are to adjust the left-and-right direction. while the inner two cap head screws on the frame side are to adjust the up-and-down direction and the outer two cup head screws on the frame side are to adjust the front-and-back direction, that is also can be understood as the flatness degree.





Invisible, but not unsightly.


Our 3D Adjustable Concealed hinge has been going from being a welcome technologically superior substitute for other "invisible" hinges when the odd concealed door was detailed, to one that is being throughout a project's interior and exterior doors. This acceptance has grown from a realization by contractor, millworker and architect alike of the significant cost savings that an adjustable hinge can bring to the project.





3D Concealed Hinges details



Multi Functional 3D Concealed Hinges With Different Surface Treatment 0

Multi Functional 3D Concealed Hinges With Different Surface Treatment 1
