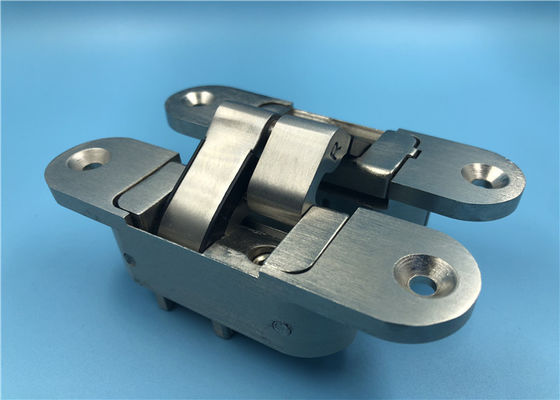

Left Open Concealed Cabinet Hinges / Hidden Door Hardware Hinge 180°

Left Open Concealed Cabinet Hinges / Hidden Door Hardware Hinge 180°
Left Open Concealed Cabinet Hinges / Hidden Door Hardware Hinge 180°
Left Open Concealed Cabinet Hinges / Hidden Door Hardware Hinge 180° Left Open Concealed Cabinet Hinges / Hidden Door Hardware Hinge 180° Left Open Concealed Cabinet Hinges / Hidden Door Hardware Hinge 180° Left Open Concealed Cabinet Hinges / Hidden Door Hardware Hinge 180° Left Open Concealed Cabinet Hinges / Hidden Door Hardware Hinge 180° Left Open Concealed Cabinet Hinges / Hidden Door Hardware Hinge 180°

Large Image :  Left Open Concealed Cabinet Hinges / Hidden Door Hardware Hinge 180°

Product Details:
Place of Origin: Jiangmen, Guangdong
Brand Name: JKL
Certification: SGS,CNAS
Model Number: BG001
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: 1 pc/poly bag, 1 pc/inner white box, 40 pcs/carton
Delivery Time: 15 days.(A small amount of stock all the time)
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 10,000 pcs/month

Left Open Concealed Cabinet Hinges / Hidden Door Hardware Hinge 180°

Description
Name: Concealed Cabinet Hinges Advantages: Adjustable Without Disassemblying Door Leaves,Drilling To Be Invisible Installation,Concealed For A Complete Flush Look, Top Range Quality, High Sensory, Durable And Silent
Weight Loading: 60 Kgs/3 Pcs Material: Zinc Alloy
Open: Left Open Open Degree: 180°
Adjustment Range: Up&down±1.5mm, Left&right: ±1.0mm, Front&back:±1.0mm. Min Door Thickness: 40mm
Max Door Width: 1000mm Door Higher Than 2100mm: Suggest To Fix 4 Hinges
High Light:

adjustable soss hinges

,

invisible cabinet hinges

Left Open Concealed Cabinet Hinges / Hidden Door Hardware Hinge 180°



Concealed Cabinet Hinges Introduction:



Concealed Cabinet Hinges are a kind of high quality, high sensory, durable and silent door hinge products.

After its installation on the doors, the Invisible Hinges not only performed wonderfully but also kept their contemporary style simply by not getting in the way. Fitting well with their existing door color, it eliminated a lengthy review of door hinges for their updates.



Concealed Cabinet Hinges are made from the thickness of 13mm-34mm&suitable for door thickness from 16-100mm, bearing up to 3 pieces/200 kg, with Satin, Satin Chrome,Satin Nickel, Antique Brass, Antique Copper etc which are more than ten kinds of surface treatment. These hinges are widely used in indoor doors, villa doors, hotel rooms, folding doors, furniture doors, cabinet doors, box covers and so on. We believe that there is always one that is suitable for your request.



Concealed Cabinet Hinges Features:



 Size(Width x Height):  30*110mm
 Material:  Zinc alloy
 Adjustment range  up&down±1.5mm, left&right: ±1.0mm, front&back:±1.0mm.
 Popular surface finishes:  SS Arms / Satin Chrome / Satin Brass / Chrome Painted/ Gold Painted.
 Main usage:  Wooden door, Metal door, Folding door, Concealed door, Interior door etc
 Weight loading:  60kgs/3pcs.
 Distinguishing for left or right:  No.
 Min door thickness:  40mm
 Open&Close:  100,000
 Service life:  >5 years
 Advantages:  Adjustable without disassemblying door leaves,Drilling to be invisible installation,Concealed for a complete flush look,high quality, high sensory, durable and silent



Designers spend time detailing an "invisible" door, they may go through endless rounds of picking veneer to match the grain exactly, and simply want to keep clean and dead-even gaps around their door panels. Because our hinge is adjustable in 3 dimensions large and heavy doors can be installed quickly, saving money for the millworker and installer and insuring it all looks sharp in the end. In reality, for detail-driven designers, nothing is ever really invisible. So, when you open that door, at the very least, the hinge better match the finish of the hardware on the rest of the project.



Invisible, but not unsightly.


Our 3D Adjustable Concealed hinge has been going from being a welcome technologically superior substitute for other "invisible" hinges when the odd concealed door was detailed, to one that is being throughout a project's interior and exterior doors. This acceptance has grown from a realization by contractor, millworker and architect alike of the significant cost savings that an adjustable hinge can bring to the project.





Concealed Cabinet Hinges details



Left Open Concealed Cabinet Hinges / Hidden Door Hardware Hinge 180° 0

Left Open Concealed Cabinet Hinges / Hidden Door Hardware Hinge 180° 1
