Steel Welding On Continious Industrial Piano Hinge For Heavy Duty Door

Certification
Good quality SOSS Invisible Hinge for sales
Good quality SOSS Invisible Hinge for sales
We have finished our new hotel last Friday. Your hinges are fitted very well!

—— Gabriella

We received the 3D hinges, they looks nice after installation, and get a good performance on weight loading. We appreciated your effort,Thanks!

—— Stephen

Yes, the hinges are working well. I will defiantly keep you in mind for future products My thanks and regards

—— Russell

I'm Online Chat Now

Steel Welding On Continious Industrial Piano Hinge For Heavy Duty Door

China Steel Welding On Continious Industrial Piano Hinge For Heavy Duty Door supplier
Steel Welding On Continious Industrial Piano Hinge For Heavy Duty Door supplier Steel Welding On Continious Industrial Piano Hinge For Heavy Duty Door supplier Steel Welding On Continious Industrial Piano Hinge For Heavy Duty Door supplier

Large Image :  Steel Welding On Continious Industrial Piano Hinge For Heavy Duty Door

Product Details:

Place of Origin: Jiangmen, Guangdong
Brand Name: JKL
Certification: SGS,CNAS
Model Number: CPH007

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Bundle, Carton, Wooden box.
Delivery Time: 7-20 days.
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 100,000 pcs/month
Contact Now
Detailed Product Description
Main Usage: Subway Metro Channel Gate, Wooden Door, Metal Door, Swing Door, Wooden Box, Metal Box, Toolbox Advantages: Easy To Customize, No MOQ Request.
Weight Loading: As Customers' Request, Up To 200 Kgs/hinge Size: Customizable
Material: Stainless Steel, Steel(Iron), Brass, Aluminum Popular Surface Finishes: Self Color, Satin, Polished, Zinc Plated, Gold Plated
Open Degree: 90-360° Packing: Bundle, Carton, Wooden Box.
Screw Including: As Clients' Request Service Life: >5 Years

Steel Welding On Continious Industrial Piano Hinge For Heavy Duty Door



Model No.: CPH007

Name: Steel Welding on Continious Piano Hinge for Metal door Toolbox Machine door



Welding On Continious Piano Hinge Details:

Size

 1.0"-5.0" on open width; 0.5-5.0mm on thickness;

50-5000mm on length, 1.5-10.0mm on pin diameter

Material  Steel(Iron), Stainless steel, Aluminum, Brass.
Finish  Blank, Satin, Polished, Zinc plated, Gold plated, Black.
Screws including  According to customers' request.
Range of application  Subway Metro Channel Gate, Wooden Door, Metal Door, Swing Door, Machine door, Wooden case, Metal box, Toolbox.
Advantages  Customizable, Durable, Low MOQ request
Service life  >5 years
Packing  Bundle, Carton, Wooden box.
Knuckle length  0.2-6.0" or Customized

Overview

  • This steel blank piano hinge is an economical choice for where a strong hinge is needed and corrosion will not be a problem.
  • Available in six different open widths.
  • Knuckle length is 1/2".
Details
  • 1-1/16" Wide Hinge: .042" Material thickness, .091" pin diameter
  • 1-1/2" Wide Hinge: .042" Material thickness, .091" pin diameter
  • 2" Wide Hinge: .042" Material thickness, .091" pin diameter
  • 2-1/2" Wide Hinge: .050" Material thickness, .120" pin diameter
  • 3" Wide Hinge: .050" Material thickness, .120" pin diameter
  • 3-1/2" Wide Hinge: .050" Material thickness, .120" pin diameter

Cutting Service

  • We will ship the remaining parts of any hinge that has been cut.
  • Our cutting blade is approximately 1/16" thick so there is some loss of material with every cut made. For example, a hinge with 5 cuts made will lose 5/16" of material.
  • The hinge knuckles on this product are spaced at 1/2" intervals. Please keep this in mind when sizing your cuts. It is best to ask for a cut at a joint or in the middle of a knuckle. That means that it is really best to ask for cuts that are sized to a whole inch, a 1/2 inch or a 1/4 inch (for example 12" or 12-1/2" or 12-1/4").
  • Hinges that have been cut for you are absolutely not returnable and the order may not be canceled if it has already been cut. In order to ensure our customers receive their hardware as soon as possible, we are sometimes cutting your hinge within 30 minutes after your order has been placed. If you need to change your order we need to hear from you within 30 minutes of the time the order has been placed. No changes or cancellations may be made after 30 minutes on any hinge cutting order.
  • We can only promise cutting accuracy to plus or minus 1/8".

Shipping

  • A piano hinge that is 46" or longer is considered "Oversize" by express.
  • You can save oversize shipping charge by having your hinge cut to a size below 46".
  • Express companies do not guarantee delivery times on next day, 2nd day, or 3 day shipments that are oversized. We do not recommend express delivery for piano hinges.

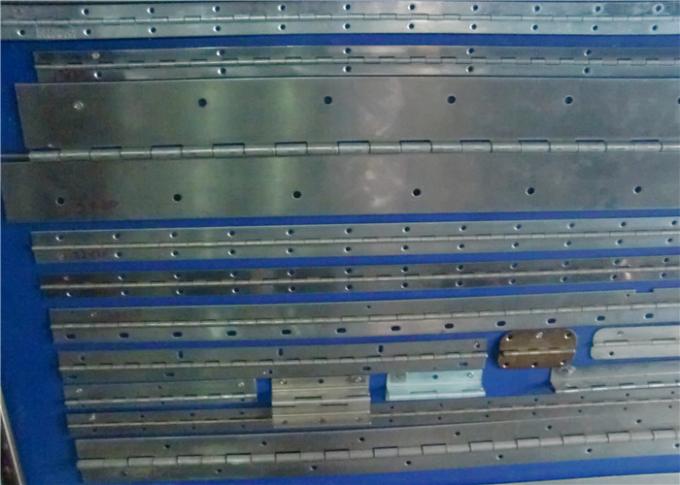

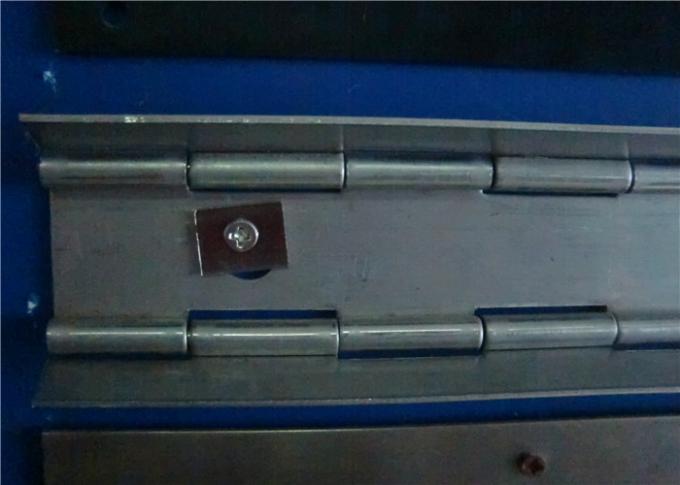

Other related photos:

Steel Welding On Continious Industrial Piano Hinge For Heavy Duty DoorSteel Welding On Continious Industrial Piano Hinge For Heavy Duty Door
