Chrome Painted / Gold Painted 3D Adjustable Concealed Hinge 135x18x21 mm

China Chrome Painted / Gold Painted 3D Adjustable Concealed Hinge 135x18x21 mm supplier
Chrome Painted / Gold Painted 3D Adjustable Concealed Hinge 135x18x21 mm supplier Chrome Painted / Gold Painted 3D Adjustable Concealed Hinge 135x18x21 mm supplier Chrome Painted / Gold Painted 3D Adjustable Concealed Hinge 135x18x21 mm supplier Chrome Painted / Gold Painted 3D Adjustable Concealed Hinge 135x18x21 mm supplier

Large Image :  Chrome Painted / Gold Painted 3D Adjustable Concealed Hinge 135x18x21 mm

Product Details:

Place of Origin: Jiangmen, Guangdong
Brand Name: JKL
Certification: SGS,CNAS
Model Number: BG010

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: 1 pc/poly bag, 1 pc/inner white box, 40 pcs/carton
Delivery Time: 15 days.(A small amount of stock all the time)
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 10,000 pcs/month
Contact Now
Detailed Product Description
Main Usage: Wooden Door, Metal Door, Folding Door, Swing Door, Heavy Duty Door Advantages: Adjustable Without Disassemblying Door Leaves,Drilling To Be Invisible Installation,Concealed For A Complete Flush Look, Top Range Quality, High Sensory, Durable And Silent
Weight Loading: 40 Kgs/2 Pcs Size: Height*Width=140&135*18*21*23mm
Material: Zinc Alloy Wings, Aluminum Arm. Surface Finish: Gold Painted
Open Degree: 180° Adjustment Range: Up&down±3.0mm, Left&right: ±3.0mm, Front&back:±1.5mm.
Min Door Thickness: 30mm Max Door Width: 1000mm
Distinguishing For Left Or Right: No Door Higher Than 2100mm: Suggest To Fix 4 Hinges

Chrome Painted / Gold Painted 3D Adjustable Concealed Hinge 135x18x21 mm





Item No.: BG010

Name: 140*135x18*21mm Zinc Alloy 3D Adjustable Concealed Hinge for Wooden Metal Door

Details:

 Size(Width x Height):  140&135*18*21*23mm
 Material:  Casting Zinc Alloy wings, Aluminum arm.
 Adjustment range  up&down±3.0mm, left&right: ±3.0mm, front&back:±1.0mm.
 Popular surface finishes:  Chrome Painted/ Gold Painted.
 Main usage:  Wooden door, Metal door, Folding door, Concealed door, Interior door etc
 Weight loading:  40 kgs/2 pcs.
 Distinguishing for left or right:  No.
 Min door thickness:  30mm
 Open&Close:  100,000
 Service life:  >5 years
 Advantages:  Adjustable without disassemblying door leaves,Drilling to be invisible installation,Concealed for a complete flush look,high quality, high sensory, durable and silent



Zinc Alloy 3D Adjustable Concealed Hinge Introduction:

Compared to SUS Adjustable Concealed Hinge, BG010 is made by Casting Zinc alloy, the weight loading is less than SUS ones. it mainly be used for light duty wooden doors or PVC Aluminum doors, and the cost is much less too. So customer can choose according to your door size and weight. If your door is not too heavy and wide, BG010 is your better choice.



Our Adjustable Concealed Door Hinge BG010 is for use in metal or wood applications, and it is universal for right&left open doors. This hinge has been tested by 100,000 times on open&close(weight loading 80 kgs/2 pcs). Usually we suggest to install 3 pcs of hinges/door. door size: Minimum thickness 40mm, Max width 1000mm, max height 2000mm. If the door height is more than 2100, please use 4 hinges.



Made in Jiangmen Guangdong CHINA, our 3D Adjustable Concealed Hinges are made from 18-30mm on width, 95-160mm on height, Material from SUS to Zinc alloy. The most comprehensive concealed hinge system for premium flush doors. Easily adjustable in 3-Dimensions, These 3D Adjustable hinges bring an unparalleled level of performance, precision and control over what has previously been a difficult detail to build and maintain. There is no other hinge system in the world that provides the solutions.



Designers spend time detailing an "invisible" door, they may go through endless rounds of picking veneer to match the grain exactly, and simply want to keep clean and dead-even gaps around their door panels. Because our hinge is adjustable in 3 dimensions large and heavy doors can be installed quickly, saving money for the millworker and installer and insuring it all looks sharp in the end. In reality, for detail-driven designers, nothing is ever really invisible. So, when you open that door, at the very least, the hinge better match the finish of the hardware on the rest of the project.



Drawing:

Chrome Painted / Gold Painted 3D Adjustable Concealed Hinge 135x18x21 mm

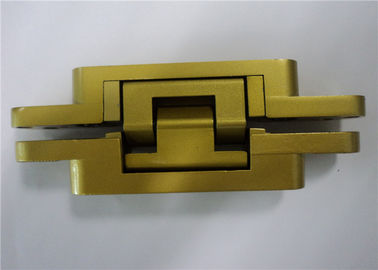

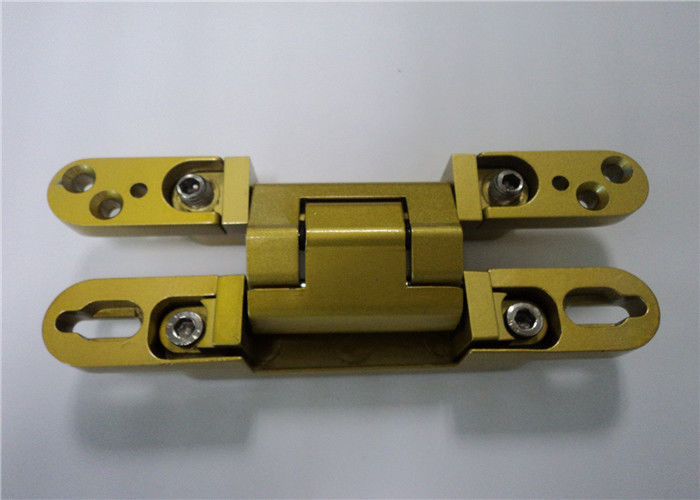

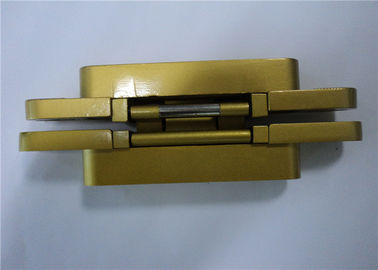

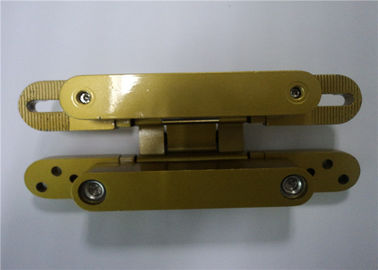

Real Photos in Gold Painted Surface:

Chrome Painted / Gold Painted 3D Adjustable Concealed Hinge 135x18x21 mmChrome Painted / Gold Painted 3D Adjustable Concealed Hinge 135x18x21 mm

Chrome Painted / Gold Painted 3D Adjustable Concealed Hinge 135x18x21 mm
