Fire Proofing Solid SS 304 Heavy Duty Invisible Hinge For Security Metal Door

China Fire Proofing Solid SS 304 Heavy Duty Invisible Hinge For Security Metal Door supplier
Fire Proofing Solid SS 304 Heavy Duty Invisible Hinge For Security Metal Door supplier Fire Proofing Solid SS 304 Heavy Duty Invisible Hinge For Security Metal Door supplier Fire Proofing Solid SS 304 Heavy Duty Invisible Hinge For Security Metal Door supplier Fire Proofing Solid SS 304 Heavy Duty Invisible Hinge For Security Metal Door supplier

Large Image :  Fire Proofing Solid SS 304 Heavy Duty Invisible Hinge For Security Metal Door

Product Details:

Place of Origin: JIANGMEN, GUANGDONG
Brand Name: JKL
Certification: Fire-rating,SGS,CNAS
Model Number: CG002

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiable on quantity
Packaging Details: 2 pcs/inner box, 20 pcs/carton.
Delivery Time: 15-20 work days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 30000 pcs/month
Contact Now
Detailed Product Description
Name: Fire Proofing Solid SS 304 Heavy Duty Invisible Hinge Size: 28x118x22mm
Material: Solid SS 304(316 Available) Surface: Satin, Polished, PVD
Fire Proof Time: >1.5 Hours Weight Loading: 100 Kgs/3 Pcs
Open Degree: 180° Open&close: 20,0000
Used For: Fire-proof Door, Folding Door, Metal Door, Security Door

Fire Proofing Solid SS 304 Heavy Duty Invisible Hinge For Security Metal Door







Product Details:

Name Fire proofing Solid SS 304 Heavy duty Invisible Hinge
Width 28mm
Length 118mm
Intermediate gap 22mm
Deepth 41mm
Min door thickness 40mm
Regular Surface Satin, Polished, AB, AC, PVD.
Fire rating time >1.5 hours
Weight bearing 100 kgs/3 pcs
Service life >5 years
Nearest port Jiangmen, Shenzhen, Guangzhou.







Usage and Installation

  • Fire rated full stainless steel 304 conceal invisible door hinge
    Suitable for solid wood door, steel wood door, wood door, security door, steel door, armored door,
  • decorative craft door, fire door, composite door, aluminum alloy.door, wood plastic door, cabinet door,
  • metal door, bronze series craft door, glass Mosaic, outside door, interior door, wooden door, aluminum alloy
  • door, plastic door,aluminum wood doors, stainless steel door, flat open door, ecological door, interior door,
  • explosion-proof door, anti-knock door, fire door, etc
  • Tested for over 200,000 cycles ,no abrasion





Standard packing:

White inner boxes,Yellow-brown outer cartons.

1 pc/poly bag, 2 pcs/inner white box, 20 pcs/carton.

N.W/piece:1.45 kgs; N.W./carton:19.00 kgs; G.W./carton: 20.00 kgs.

Carton Size: 32.5X25X11CM



Queations you may ask:

1, Samples' free or charged including the express cost?

Samples' cost less than USD 50.00 will not be charged, express cost on customer's side.

2, Factory area and number of employees?

5000 ㎡&100 workers

3, Delivery time for regular orders?

We always keep s small amount of stock(around 1000 pcs for each sizes), and for mass orders, certainly finish from 15 days up to 30 days.

4, Your capacity for one month?

Up to 500,000 pcs accoding to different sizes.

5, Your annual sales value?

In 2017, exceed 6 million dollars.

6, How will you treat on after-sale quality problems?

If responsibility confirmed on our side, we will make full compensation for free including shipping charge.

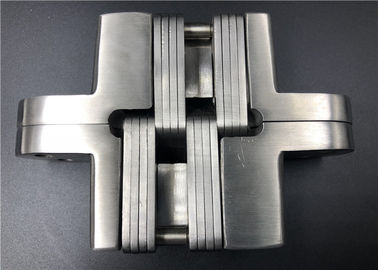

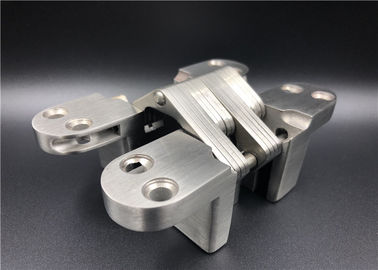

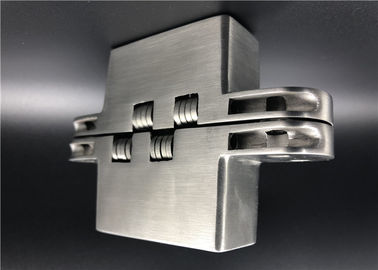

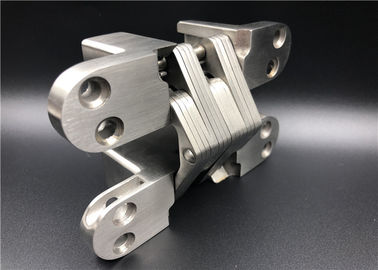

Real photos:

Fire Proofing Solid SS 304 Heavy Duty Invisible Hinge For Security Metal Door

Fire Proofing Solid SS 304 Heavy Duty Invisible Hinge For Security Metal Door

Fire Proofing Solid SS 304 Heavy Duty Invisible Hinge For Security Metal Door

Fire Proofing Solid SS 304 Heavy Duty Invisible Hinge For Security Metal Door
